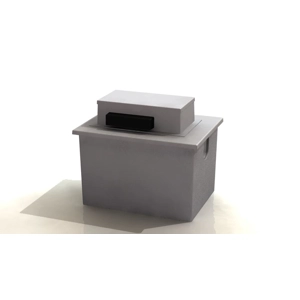

Drayton Tanks WRAS Approved GRP One Piece Water Break Tank
with Type AB Airgap providing Category 5 backflow protection.

These Water tanks are insulated with a 25mm Thick Insulated Tank Wall

The Water Tanks are supplied Complete with a bolted lid

These Tanks are WRAS Approved for Potable water Storage for drinking water

The Type AB Airgap is acheived with a Screened Spillover Weir in the tank wall
or in a Raised Housing ontop of the lid (please note the housing cannot be larger than the tank).

The size of the AB Airgap and wiers are dependant on the inlet size, and this provides the Highest Category of backflow prevention to Cat 5.



These tanks are supplied with :

• Option for Brass Equilibrium Ballvalve with Droparm (full Bore)*
• Bolted Lid
• Option for Raised Housing (please check size of housing will fit on tank selected

* These fittings are supply only and are not fitted to the tank

Full Standard Size Chart available here
Other Size Tanks Also Available, Please call our sales team for more information on 0871 288 4213.


Leadtime : 7-15 Days
